Your contractor just broke the news: the bathroom is smaller than you thought. You stand in the empty space with a tape measure, wondering how you’re supposed to fit a toilet, sink, and shower into what feels like a glorified closet.
I’ve spent enough time staring at bathroom dimensions to know that small doesn’t have to mean cramped. The difference between a bathroom that works and one that frustrates you every morning often comes down to layout. I’ve gathered 15 floor plan examples that prove you can create a functional, comfortable bathroom even when square footage is limited.
Compact Three-Fixture Layout with Linear Flow
This layout demonstrates efficiency at its finest. The fixtures line up along two walls in a rectangular space measuring roughly 220 by 240 centimeters.
r/Total_HD mapped out a design that places the bathtub along the longest wall, with the toilet and sink positioned on the adjacent wall. The washing machine sits in the corner opposite the tub, creating a triangular workflow. Notice the door swing—it opens into the room without hitting any fixtures, a detail that matters more than you’d think. The measurements show 160 centimeters for the tub, 40 for the toilet area, and 20 for the sink section.
What makes this work is the clear circulation path down the center. You’re not squeezing between fixtures or doing an awkward dance to reach the shower. The linear arrangement also simplifies plumbing runs, which can save money during installation.
If you’re working with similar dimensions, pay attention to the door placement. Swinging into the vanity or toilet creates daily annoyance. This layout keeps the entry clear while maintaining access to all fixtures.
Accessible Design with Separate Shower and Closet
Accessibility doesn’t have to compromise style. This 2100 by 1950 millimeter plan proves it.
The shower occupies its own enclosed space on the left side, complete with a bench seat. r/kamzn included detailed measurements showing the shower bench area and clear floor space that meets accessibility standards. The main bathroom area features numbered zones (01-04) that indicate different functional areas, with the toilet positioned on the right side.
The separation of wet and dry zones stands out here. The shower gets its own room essentially, which prevents water from spreading across the entire bathroom. That bench isn’t just for accessibility—it’s practical for anyone who’s ever tried to shave their legs while balancing on one foot.
Building codes aside, this layout teaches a valuable lesson about zoning. Even in small bathrooms, creating distinct areas for different activities makes the space feel more organized and intentional.
Corner Entry Layout for Narrow Spaces

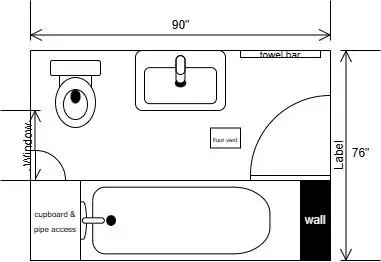

Some bathrooms are more hallway than room. This 90 by 76 inch plan addresses that challenge directly.
The tub runs along the back wall, the sink sits in the corner, and the toilet tucks beside it. r/SubieGal9 shows how corner placement of the sink creates more floor space than you’d expect in this configuration. The door is positioned along the bottom wall, and notice the “wall” notation on the right side—this layout assumes one side backs up to another room.
The genius here is in what’s not shown: wasted space. Every inch serves a purpose. The corner sink might seem like an odd choice, but it actually opens up the walking path more than a traditional vanity would.
For narrow bathrooms, this approach works because it acknowledges the room’s shape instead of fighting it. You’re working with the proportions, not against them.
Professional Construction Plan with Detailed Annotations

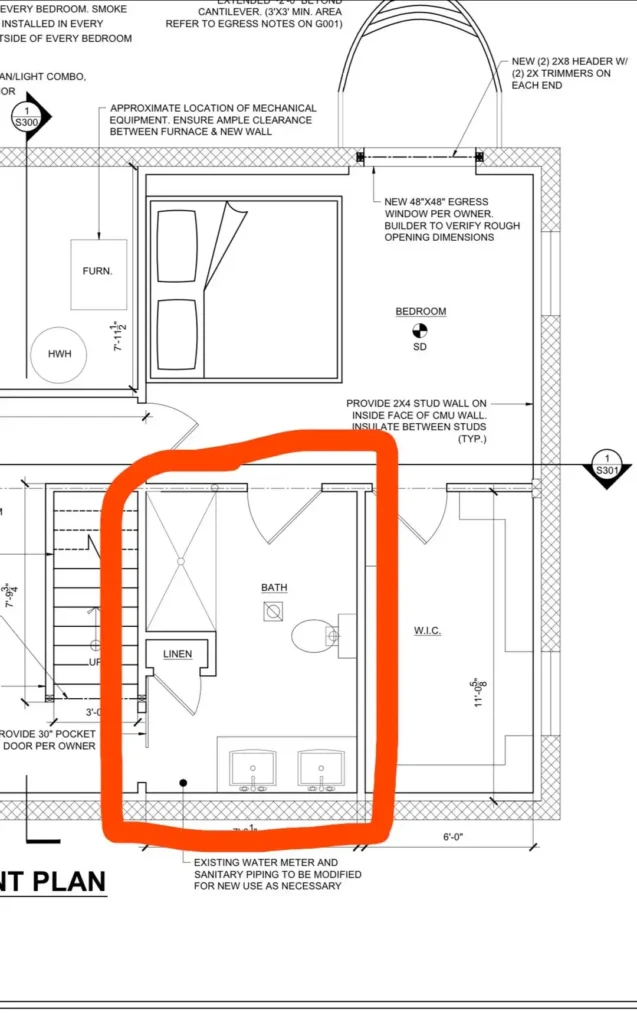

This architectural drawing shows what happens when design meets real-world construction requirements. The bathroom layout includes furnace placement, water heater, and linen storage alongside the standard fixtures.
r/Downtown_Highway_282 provides a builder’s perspective with notes about mechanical equipment clearance, egress window requirements, and CMU wall specifications. The bathroom itself features a standard three-fixture layout, but the surrounding context shows how bathrooms fit into larger floor plans. The linen closet sits adjacent to the bathroom, and the detailed annotations indicate this is meant for construction, not just planning.
What I appreciate about this example is the reality check it provides. Bathrooms don’t exist in isolation. You’ve got ductwork, plumbing lines, structural considerations, and code requirements that affect where fixtures can actually go.
When you’re planning your own space, remember that those perfect layouts you see online might not account for the water heater that can’t be moved or the floor joist that runs exactly where you wanted the toilet.

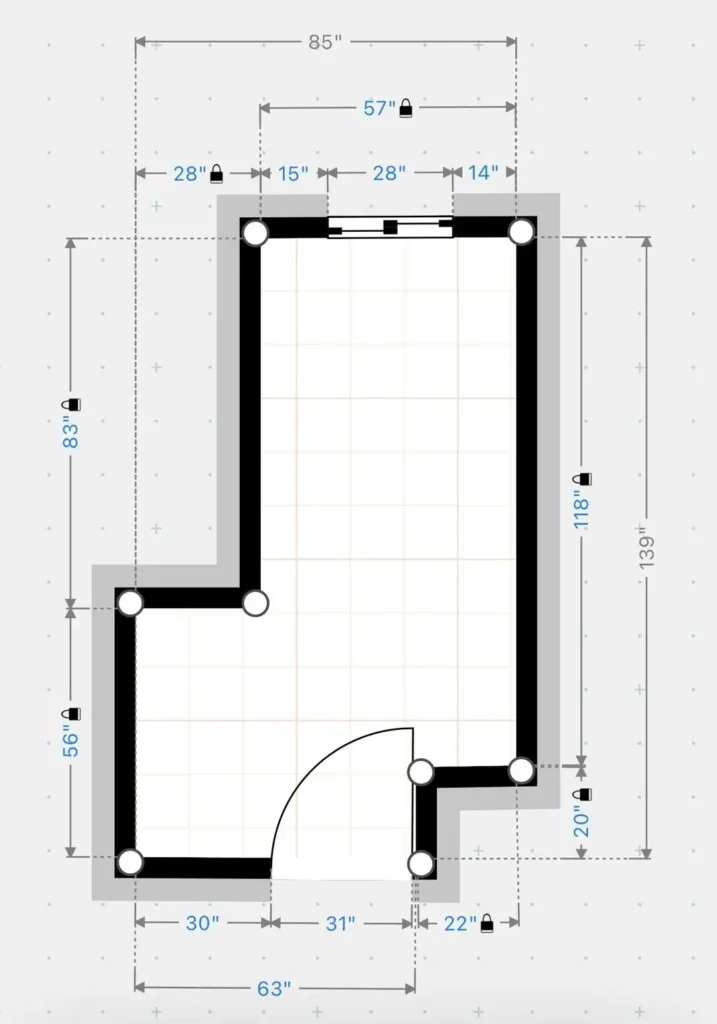

L-Shaped Layout with Extended Vanity Space
The L-shape creates opportunities that rectangular layouts can’t match. This 139 by 85 inch plan demonstrates how.
Running 83 inches along one wall and 118 inches along the other, this layout carves out substantial counter space. r/Apprehensive_While98 designed this with the toilet in the lower left corner, a generous vanity area extending along the left wall, and open floor space in the main area. The measurements indicate 56 inches of depth on one side and 20 inches on the counter extension.
The extra counter space changes how you use the bathroom. You’re not fighting for room to set down your toothbrush or store daily essentials. That L-configuration also creates a natural separation between the toilet and the main bathroom area without requiring walls or doors.
If your bathroom footprint allows for this shape, consider how that extended counter run might solve storage problems. Sometimes the best small bathroom layout is one that maximizes horizontal surface area rather than just fitting fixtures into the smallest possible box.
Compact Commercial Layout with Shower Separation

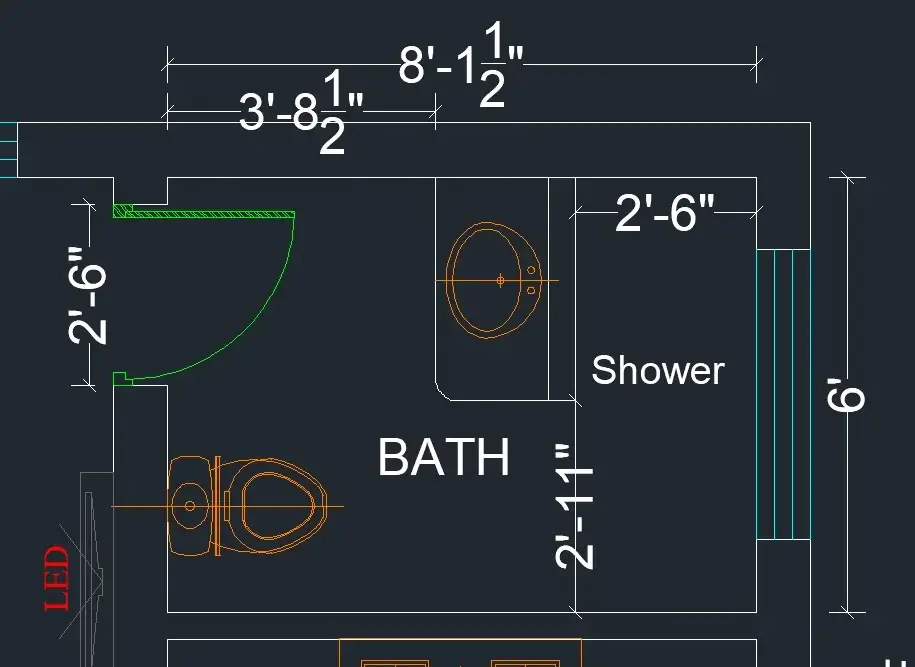

This plan measures approximately 8 feet by 9 feet and takes a different approach to fixture arrangement. The toilet and shower occupy separate alcoves.
The toilet sits in its own 2-foot-6-inch nook on the left, while the shower takes up a similar space in the top right corner. r/MurderDie centered the main floor space with about 2 feet of clearance in the middle section. The dark background suggests this might be a CAD drawing intended for commercial or multi-family construction.
What strikes me about this layout is the emphasis on privacy and separation despite the compact size. Each fixture gets its own defined space rather than everything opening into one room. This matters in shared bathrooms or commercial settings where multiple people might need access.
The trade-off is less open floor space, but you gain functional privacy. It’s a design choice worth considering if multiple people use the bathroom regularly.

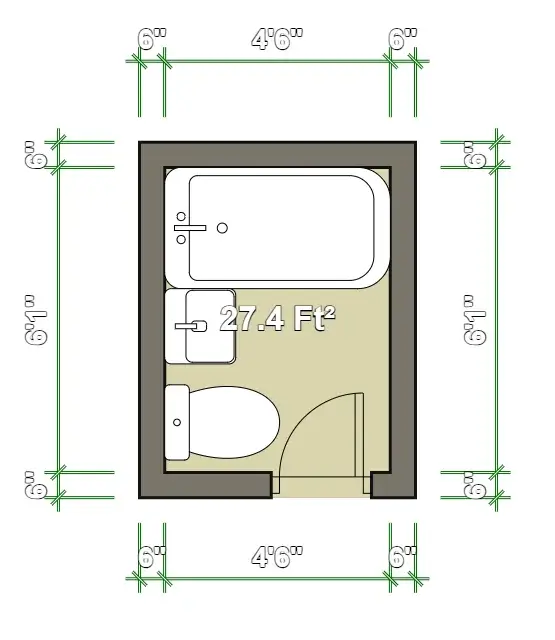

Square Footage Maximization in 27.4 Square Feet
Fitting a bathroom into 27.4 square feet sounds nearly impossible until you see it done well. This 6-foot by 6-foot plan makes it work.
The layout stacks a tub along the top wall, toilet on the left, and sink on the right side. r/Pa4ier shows exact dimensions with the room measuring 4’6″ on each side in the interior space. The fixtures are compact but full-size, proving you don’t need to resort to tiny specialty products.
The key here is the straight-line efficiency. The plumbing likely runs along one wall, which reduces costs and complexity. There’s just enough room to stand and move, but nothing extra.
For basement bathrooms, mother-in-law suites, or additions where space is tight, this proves what’s possible. You won’t be doing yoga in here, but you’ll have a functional bathroom that meets code and serves its purpose.
Jack-and-Jill Bathroom with Dual Sinks
This 9-foot-1-inch square plan is designed for sharing. Two sinks, one toilet, one shower, and two entry points create a Jack-and-Jill layout.
The shower occupies the top right corner in a 3-foot square space. r/NoArugula5727 positioned one sink on the left wall and another on the right wall, with the toilet in the lower left and entry points on both the left and bottom sides. The floor plan shows clear 3-foot entry zones and careful spacing to meet accessibility requirements.
What this layout teaches is the value of dual access when two bedrooms share a bathroom. Both users can access their sink without entering the private areas where the toilet and shower are located. You can brush your teeth while someone else is showering without creating an awkward situation.
The challenge with Jack-and-Jill bathrooms is often privacy and storage. Each user needs their own space for personal items, which this layout addresses by providing separate vanity areas.

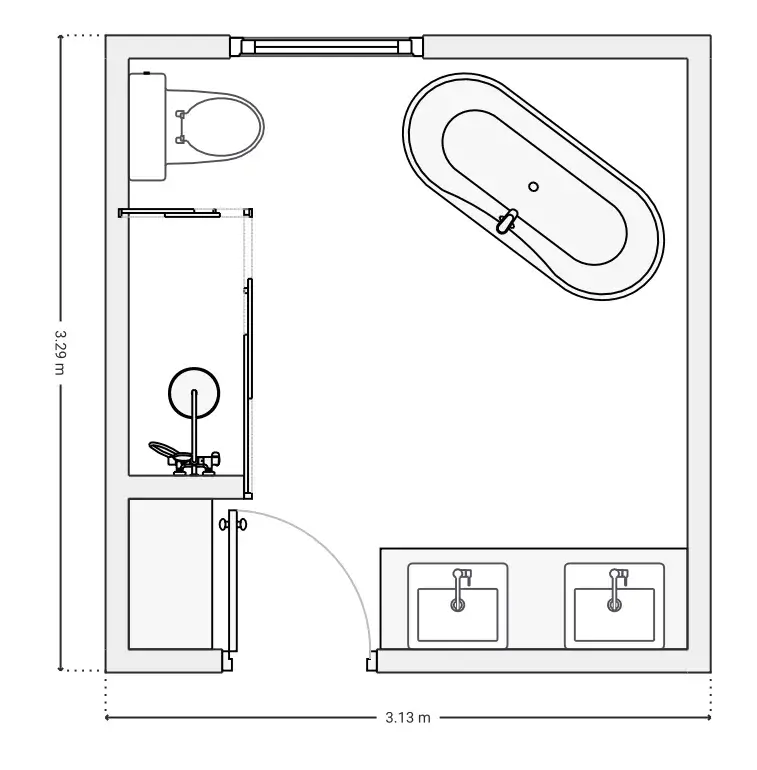

Luxury Spa Layout with Freestanding Tub
Not every small bathroom prioritizes maximum fixture count. This 3.13-meter layout chooses luxury over quantity.
The design features a freestanding oval tub as the centerpiece, positioned in the upper right quadrant. r/hippopotom included a toilet in the upper left corner behind what appears to be a privacy wall, a substantial vanity with storage along the left side, and dual sinks along the bottom wall. The amount of open floor space is notable—this layout breathes.
The trade-off is obvious: you’re dedicating significant space to that tub and the open area around it. But if a relaxing bath is important to you, this demonstrates how to prioritize that experience even in a modestly sized room.
This approach works best when the bathroom serves a primary suite rather than being a shared family bathroom. It’s a lifestyle choice reflected in the floor plan.

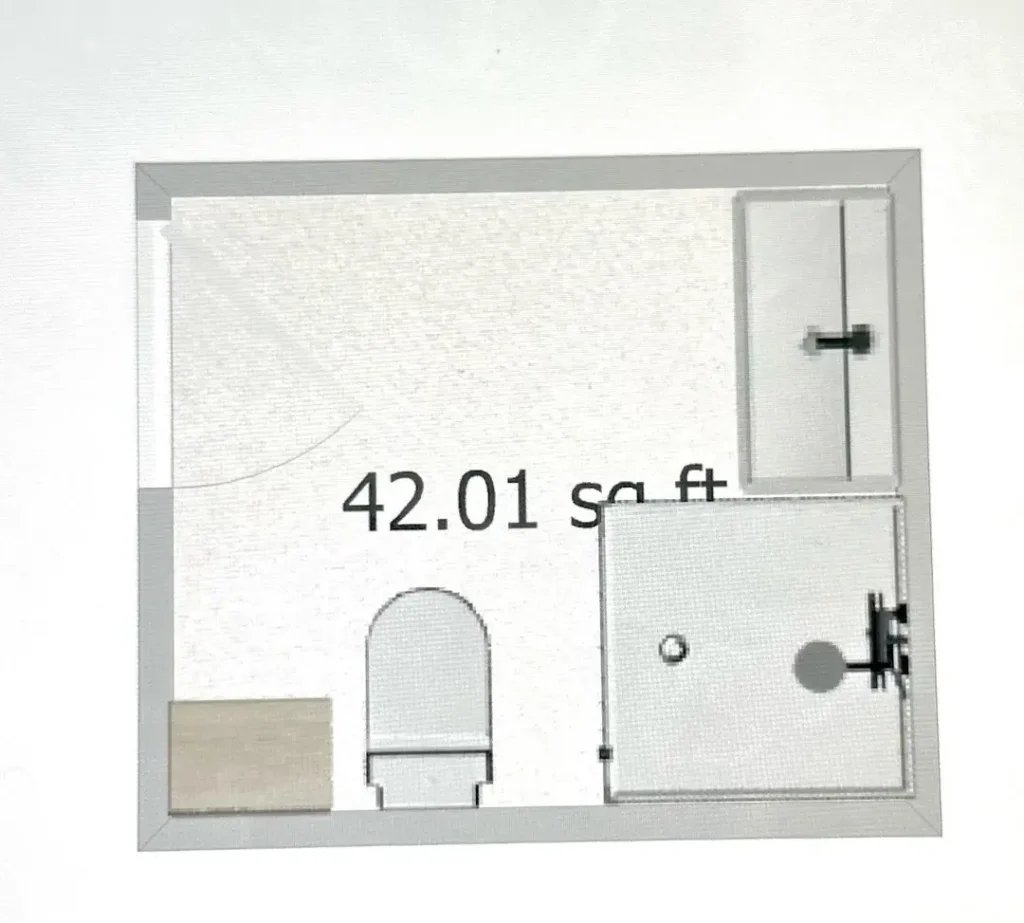

Minimal Footprint Three-Fixture Plan
This layout reduces a bathroom to its essential elements in roughly 42 square feet. The fixtures cluster tightly but maintain usability.
A small vanity sits in the lower left, the toilet occupies the center-left position, and a compact shower fills the upper right corner. r/Sweetestroses rendered this in what appears to be a 3D modeling program, showing the spatial relationships more clearly than a flat floor plan might. The door enters from the upper left, swinging into the room.
The tight clustering here is intentional. By keeping everything close, the plumbing is simplified and the remaining space stays open. There’s no wasted corridor or dead corner that serves no purpose.
For powder rooms, guest bathrooms, or anywhere you need basic facilities without extra space, this demonstrates the minimum viable bathroom. Everything works, nothing is missing, and you haven’t paid for square footage you don’t need.
Detailed Design with Multiple Layout Views

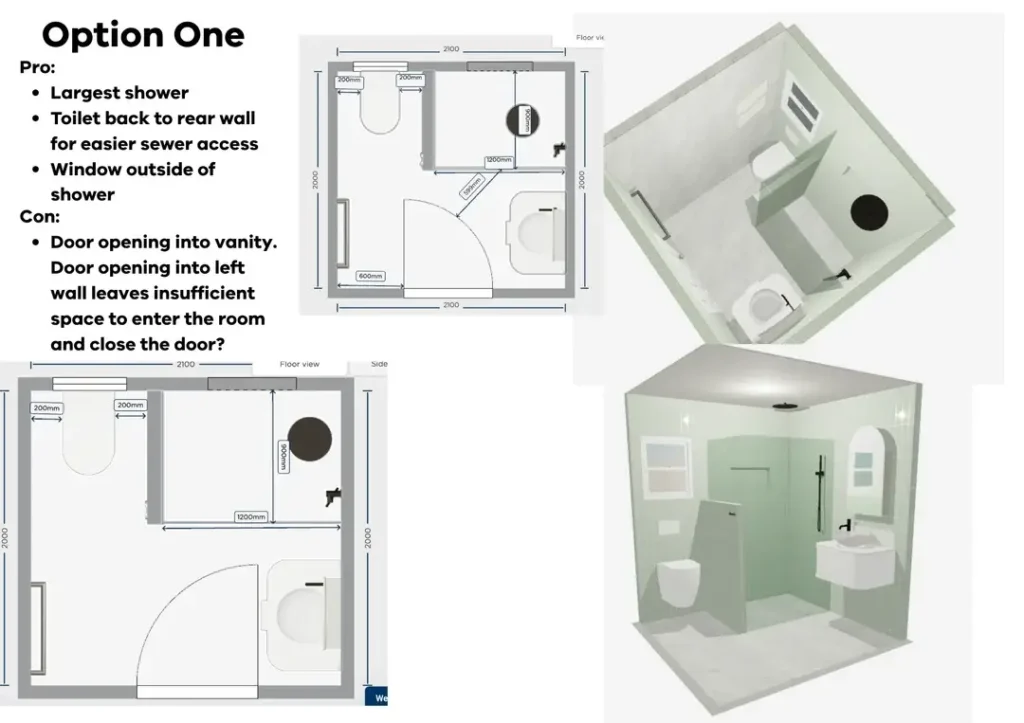

Professional planning often includes multiple perspectives. This example provides both floor plan and 3D renderings of a 2100 by 2000 millimeter bathroom.
The floor plan shows a toilet positioned against the rear wall for optimal sewer access, as noted in the accompanying text. r/Traditional-Spare605 included both plan view and 3D visualization showing how the space actually looks when built. The shower fits in one corner, the vanity along one wall, and the layout includes window placement outside the shower area—a detail that affects both privacy and ventilation.
What the multiple views reveal is how decisions look on paper versus in reality. That window location, for instance, provides natural light without creating privacy concerns during shower use. The 3D view shows the actual sight lines and how the space feels, not just how it measures.
When planning your own bathroom, creating or requesting 3D views helps catch issues before construction. You might realize the toilet is visible from the door or the shower feels more cramped than you expected.

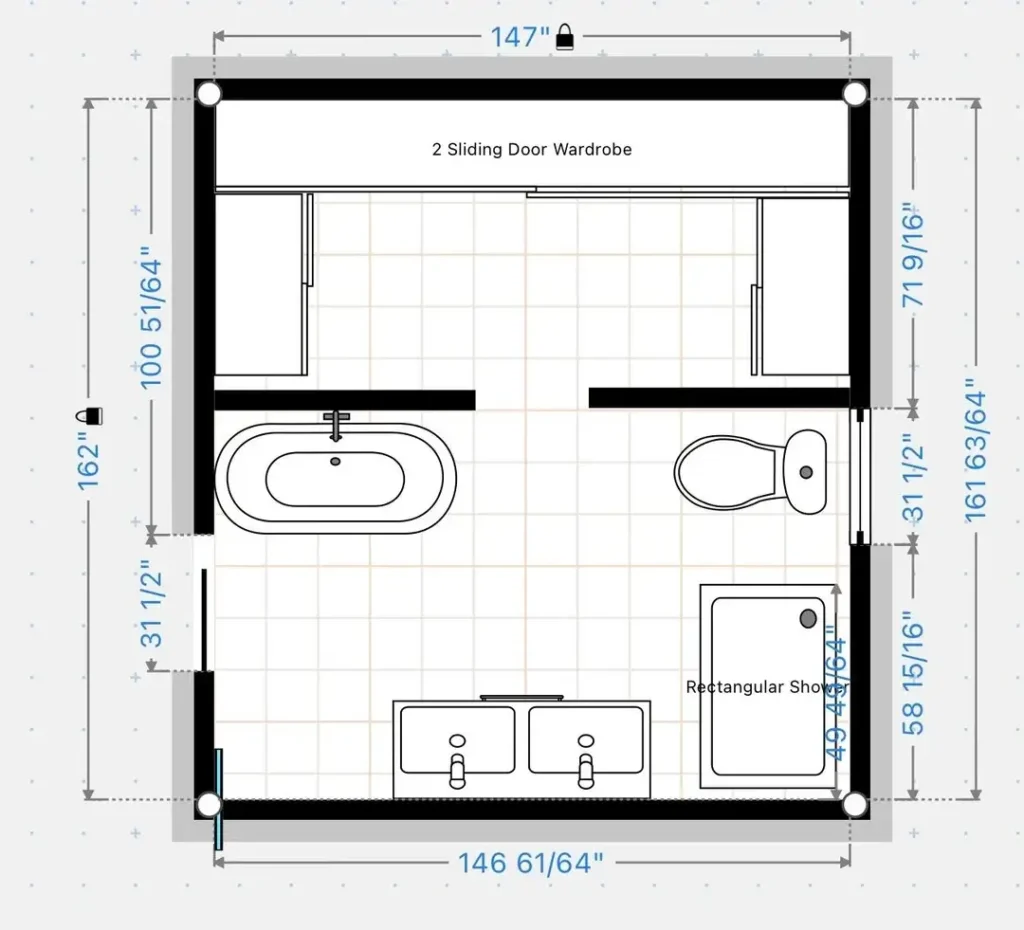

Master Bathroom with Built-In Storage
This approximately 12-foot square layout incorporates storage as a primary design element. A two-sliding-door wardrobe runs along the entire top wall.
The bathtub stretches along the left side with 162 inches of length. r/Philatangy placed the toilet in the lower right corner and included a rectangular shower on the right side. Dual sinks sit along the bottom wall. The measurements show careful attention to clearances, with specific distances noted between all fixtures.
That wardrobe integration is the standout feature. Instead of building a separate closet, the storage becomes part of the bathroom itself. This works particularly well in master suites where you’re getting dressed in the bathroom anyway.
The challenge with this approach is moisture management. Wardrobe contents and humid bathroom air aren’t natural friends. Proper ventilation becomes essential, not optional.

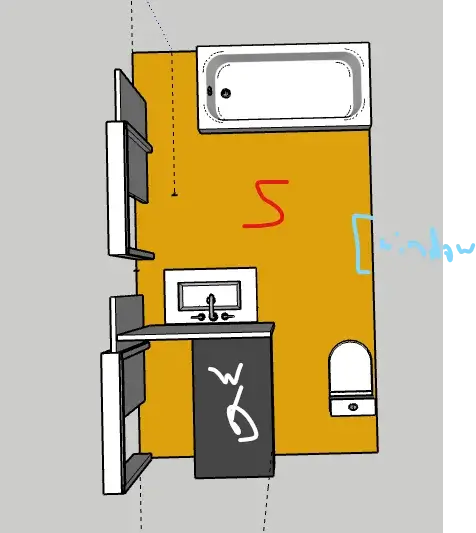

Galley-Style Bathroom with Tub Emphasis
Long and narrow defines this layout. The space stretches vertically with the tub consuming the upper portion.
A standard tub spans the width at the top, with the vanity and storage positioned along the left wall. r/jereserd created this design with a bold orange floor space indicating the walking area, and the toilet sits in the lower right corner. The sketch-like quality suggests this might be a preliminary design or quick planning tool.
The galley approach works when your space is shaped like a hallway. You’re essentially creating two walls of function with a path between them. It’s not the most spacious feeling, but it’s honest about the room’s proportions.
This layout type often appears in older homes where bathrooms were added into existing floor plans without ideal dimensions. You work with what you have.

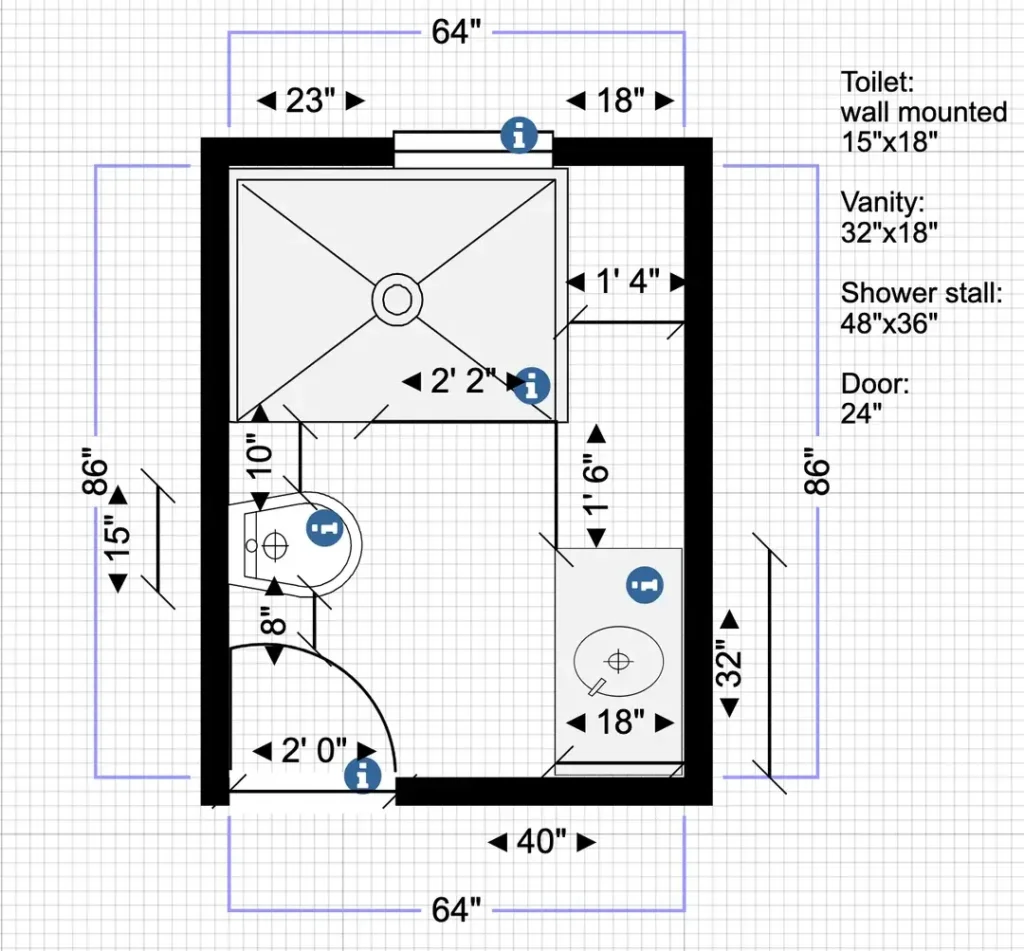

ADA-Compliant Layout with Specific Measurements
Accessibility requirements create specific design constraints. This 64-inch square layout meets those standards while remaining compact.
The shower stall occupies 48 by 36 inches in the upper right quadrant. r/sakura3199 detailed every measurement: the wall-mounted toilet at 15 by 18 inches, the 32 by 18 inch vanity, and the 24-inch door. Information icons mark key accessibility features. The plan shows 2-foot clearances where needed and careful attention to turning radius.
Building to ADA standards creates bathrooms that work better for everyone, not just people with mobility challenges. That extra maneuvering space makes the bathroom easier to clean, less claustrophobic, and more functional for anyone carrying a child or dealing with temporary injury.
The measurements here aren’t suggestions—they’re requirements. But they’re also proof that accessible doesn’t mean oversized. This fits into the same footprint as many standard bathrooms.

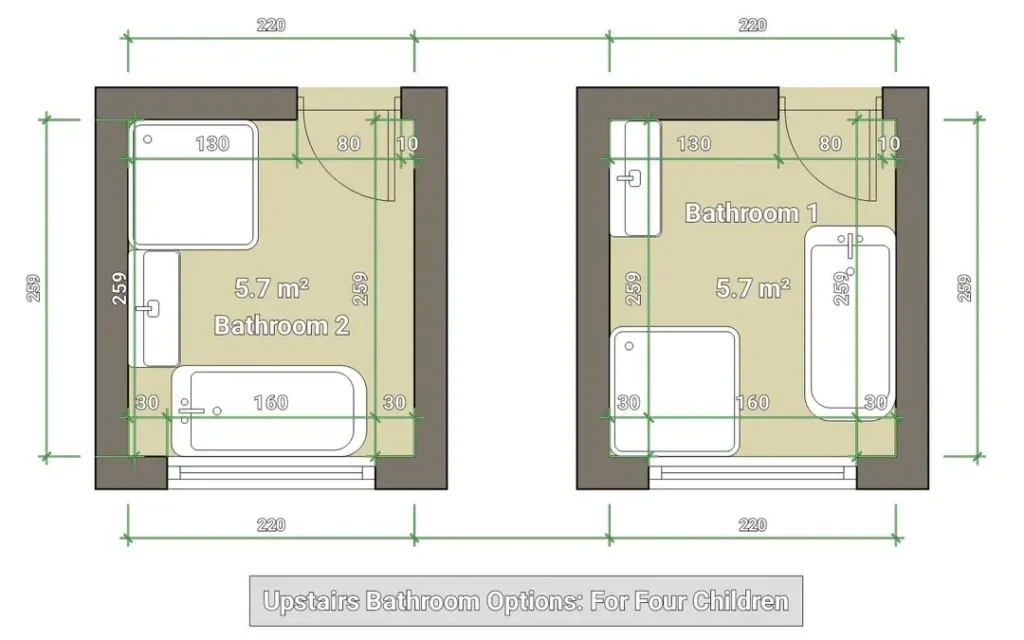

Mirror-Image Dual Bathroom Layout
Sometimes you need two identical bathrooms side by side. This plan shows both at 220 by 259 centimeters each, designed for an upstairs serving four children.
Each bathroom contains the same fixtures: a 160-centimeter tub along the bottom wall, an 80-centimeter vanity section, and a toilet. r/Revolutionary-Tea172 created these as mirror images, with Bathroom 1 on the right showing the toilet on the right side and Bathroom 2 on the left showing it on the left side. The beige floor area indicates usable space, and the green measurement lines show precise dimensions.
This symmetrical approach makes construction more efficient. The plumbing can be shared between the two rooms, and builders can repeat the same process twice rather than learning two different layouts.
For families with multiple children or multi-generational households, providing separate bathrooms reduces morning conflicts. These aren’t large or luxurious, but they’re complete and private.
Comparing Layout Approaches
Different spaces demand different solutions. Here’s how these layouts compare:
| Layout Type | Best For | Complexity | Space Required |
|---|---|---|---|
| Linear Three-Fixture | Standard rectangular rooms | Easy | 48-60 sq ft |
| L-Shaped with Extended Counter | Corner locations, storage needs | Medium | 65-75 sq ft |
| Jack-and-Jill Dual Access | Shared between two bedrooms | Medium | 80-90 sq ft |
| Galley Style | Narrow spaces, limited width | Easy | 45-55 sq ft |
| ADA-Compliant | Accessibility requirements | Advanced | 40-45 sq ft |
Making Your Layout Decision
The right small bathroom layout floor plan depends on factors beyond just measurements. Consider how many people use the space and when they use it.
A single-user bathroom can sacrifice some circulation space for additional storage or a larger shower. A family bathroom needs clearances that allow multiple people to move through efficiently, even if that means smaller fixtures. Think about your actual routine. Do you spend time getting ready at the vanity? You need counter space. Is a relaxing bath important to you? The tub becomes the priority.
Code requirements aren’t optional. Minimum clearances exist for good reasons, and trying to cheat these dimensions creates a bathroom that’s frustrating to use. Most codes require 15 inches from the toilet center to any wall or fixture, at least 21 inches of clear space in front of the toilet, and sufficient door clearance. Check your local requirements before finalizing any plan.
Plumbing location affects cost significantly. Keeping your new fixtures on the same wall as existing plumbing saves money compared to relocating drains and supply lines. Sometimes the “perfect” layout costs thousands more than a good-enough layout that works with existing infrastructure.
Final Thoughts on Small Bathroom Planning
Small bathroom layout floor plan ideas aren’t about finding the one perfect solution. They’re about understanding what’s possible and what matters to you.
I’ve shown you everything from minimal 27-square-foot plans to more generous 90-square-foot layouts with luxury features. The common thread is intentionality. Every successful small bathroom makes conscious choices about what to include and what to skip. Your bathroom doesn’t need everything—it needs the right things arranged in a way that works for your daily life.
Start with your must-haves, measure your space accurately, and choose a layout that prioritizes your actual needs over theoretical ideals. The best bathroom floor plan is the one you’ll still appreciate five years from now when you’re brushing your teeth on a Tuesday morning.
